140m Single Span Tied Arch Bridge over Motorway M8
Single Span Steel Tied Arch
Arch Section – Steel Box
Bottom Tie Member – Steel I Section Plate Girder

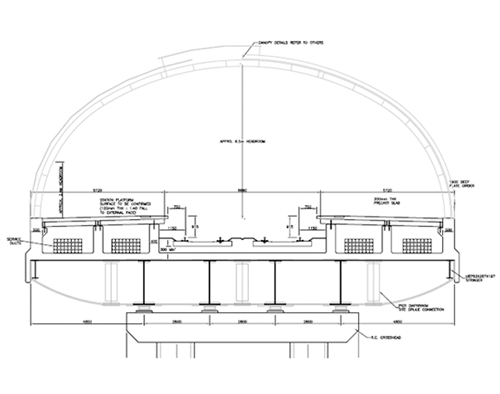

Airport Station Viaduct
4x26.1m continuous span units
Foundation & Substructure Twin Square Column on pile foundation.
Steel Composite Super Superstructure with cantilever diaphragms from main girders to support station platform.

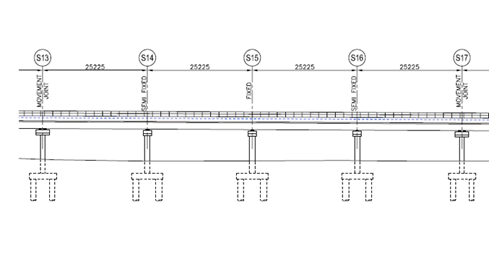

2 Km long Viaduct
4x25.25m continuous span units
Foundation & Substructure Twin Circular column on pile foundation.
Steel Composite Super structure

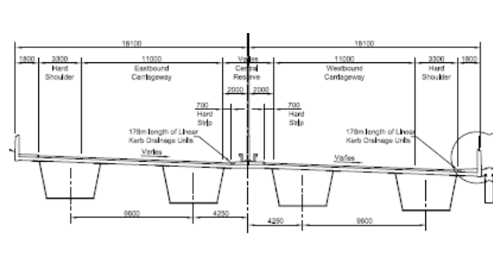

This was an 8 km long extension of M74 Motorway through Glasgow and involved number of structures crossing various Road and Railway network in Glasgow city.
There was a major thrust on Value Engineering for this Project and has given us rich experience on designing structures which are economical and easy to construct.
Bridge over Rutherglane Railway Station
Two Span Continuous (76m + 90m) Steel Composite Box Girder
Steel Box depth - 2850mm at span and 5000mm over pier.
Y type Column on pile foundation.
Various RCC/PSC Continuous 3 & 4 Span Bridges over cross Roads
Span Arrangements 17+24+17m, 14+19+19+14m, 36+42+36m etc.
Bridges are 3 or 4 span continuous bridges, integral over the Piers.
36.2m wide single deck for both carriageway
Circular multi column piers over 750 / 900 dia pile foundations
Railway Bridge over River Tame – Network Rail Project, UK
Three span (28+37.8+28) continuous Steel Plate Girder Through type Bridge
Filler Beam type Deck, supported from web near bottom flange of the Main Girder.
RCC Substructure resting over Pile foundation.
